Pressure distribution gas lubricated journal bearing

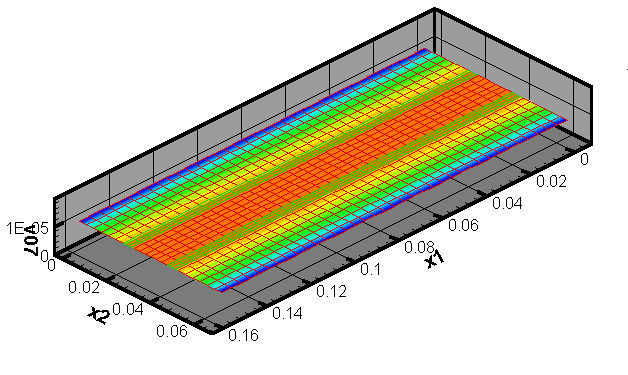

Animation of the pressure distribution as a result of a radial load,
followed by tilt.

 x1-axis: circumferential pressure distribution
x2-axis: pressure distribution bearing width
